Solar power is one of the cheapest and most popular forms of renewable energy. In fact,4.3 million solar energy kits were sold in the first half of 2023. Due to its benefits and decreasing cost over the years, more and more people are adopting it. There are many types of solar power systems available in the market. Among them, off-grid solar power systems are gaining popularity recently.
But what are off-grid solar power systems? How are they different from on-grid and other types? Are they better than them? Do off-grid solar power systems provide complete energy independence? How much they cost? If you also have such questions and are confused what are they? Should I install off-grid solar power systems?
If you have these questions in your mind, you are in the right place! In this handy guide, we will tell you everything about off-grid solar power systems and provide answers to all your queries regarding them. By the end, you will be clear whether you should install them or not.
What Are Off-Grid Solar Power Systems?
Off-grid solar power systems capture energy from sunlight using solar panels, store it in batteries, and convert it to power when it is required. Unlike other types, it is not dependent on the electricity grid. It is best for rural areas with no electricity. Installing off-grid Solar power systems is slightly costly but it has many benefits such as:
Benefits of Off-Grid Solar Power Systems
- Provide Energy Independence: Off-grid solar power systems make you completely energy-independent of the power grid. Unlike other types of solar power systems, they have no dependence on the grid which means our home will not be affected by power outages or fluctuation in electricity prices.
- Install them Anywhere: Off-grid solar power systems are easy to install anywhere because they don’t need any connection with the electricity grid like the grid-tied systems. You can get them installed in both rural and urban areas with basic knowledge. It requires minimum professional support, you can also DIY them.
- Reduced Electricity Bills: One of the main reasons people choose solar energy is to lower or eliminate their electricity bills. With off-grid solar power systems, you are totally dependent on solar energy and won’t be affected by the rising prices of electricity. Just pay the upfront cost and you are free! Even this upfront cost is paid back within a few years and you end up saving a lot more.
- Best for Rural Areas: These types of solar power systems are best for places where a constant supply of electricity is not available yet. It can help people in rural areas to become fully energy-independent at an affordable cost.
- Environmentally Friendly: Off-grid solar power systems are also environmentally friendly and help in reducing carbon footprints. They have no harmful emissions and contribute to a greener planet.
Challenges in Installing Off-Grid Solar Power Systems With Solution
Although Off-Grid solar power systems are best installing them comes with a challenge. Here are some challenges you might face (with proper solutions).
1. High Initial Costs:
The setup cost of off-grid solar systems is high compared to others. It can range from $20,000 to $100,000—especially with good quality batteries, inverters and backup generators.
What’s the Solution? Many states and governments provide tax credits, rebates, and other benefits for installing solar panels. In fact, the Federal Investment Tax Credit (ITC) in the U.S. provides a 30% tax credit on the system’s cost. Additionally, local governments offer benefits. You can avail them and reduce your costs.
2. Ongoing Maintenance:
Off-grid solar power systems require maintenance. Their batteries need to be replaced every 5–10 years, and the system needs to be checked periodically to ensure efficiency.
What’s the Solution? You must learn about these systems and maintain them properly by cleaning the solar panels and checking other components from time to time. For professional help, you can partner with any company specializing in off-grid systems and avail their services when needed.
3. Complex System Sizes
Choosing the right size for an off-grid solar system is tough. If it’s too small, you may run out of power; too large, you overspend.
What’s the Solution? Consult solar professionals and use online solar quote generator tools like SunLead to the system size, cost, and savings before installation.

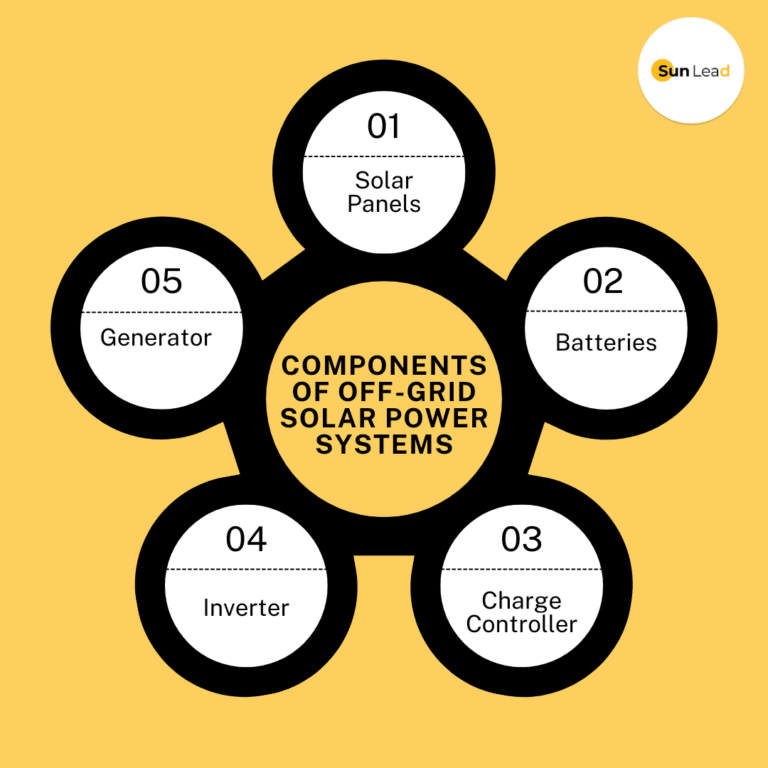

Components of Off-Grid Solar Power Systems
There are many components of Off-Grid solar power systems such as:

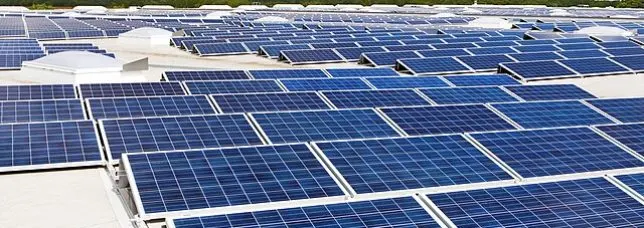

1. Solar Panels:
Solar panels are the main source of power in this system. Their main work is to capture sunlight and convert it into electricity. These can be installed on the rooftop or ground, depending on the space. Most people prefer to install them on rooftops. These panels are installed at a proper angle to capture most sunlight. Nowadays, due to space restrictions, there are flexible solar panels available in the market.
2. Batteries:
One of the most important parts of off-grid solar power systems are their batteries. They help in storing the extra electricity generated during the daytime. This energy can be used later at night or when there is no sunlight. There are many types of sizes of solar panel batteries available in the market. You can choose any of them, depending on your power usage and budget.
3. Charge Controller:
When there is plenty of sunlight, solar panels generate a lot of electricity. This electricity flows directly into batteries. This overflow can overcharge and damage them. The charge controller manages the electricity flow and stops the batteries from getting too much charge. They keep them safe and help them last longer with more efficiency.
4. Inverter:
The inverter changes the stored battery power i.e. the direct current or DC into the type of electricity (alternating current or AC) that most household devices use. This helps your appliances like lights, refrigerators, and computers to work properly with the solar power system.
5. Generator:
A generator is an important backup power source. When solar panels are not producing enough energy, like on cloudy days or at night, the generator kicks in to provide electricity. In off-grid systems, solar energy is stored in batteries for later use, but sometimes the batteries can run low. During this time, the generator helps by providing extra power.They are typically powered by fuel, such as diesel or propane.

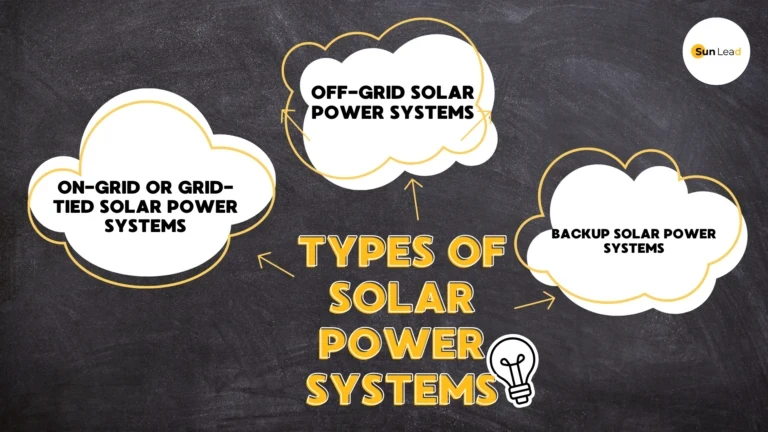

Different Types of Solar Power Systems:
There are three main types of Solar Power Systems:
1. On-Grid or Grid-Tied Solar Power Systems:
These systems are connected to the local electricity grid. They allow homeowners to generate solar power and send excess electricity back to the grid. In return, they receive credits through net metering. These credits can be used later when the solar power system isn’t producing enough power to support the needs. For example at night, during cloudy/low sunlight days, or in the winter season.
2. Off-Grid Solar Power Systems:
As the name suggests, the Off-grid systems have no connection or dependence on the grid. They have batteries that store the excess solar energy produced and provide power supply during other times. They also have a backup generator that can supply energy in extended periods of cloudy/no sunlight weather. These are the only types of solar power systems that provide complete energy independence at a higher upfront cost due to batteries.
3. Backup Solar Power Systems:
Backup solar power systems are also known as hybrid systems. They lie somewhere in between the on and off-grid system. They are connect to the grid but also have batteries for backup during power outrages. They are best for those who want to protect their homes from blackouts at a low cost.
So, Which is cheaper, on-grid or off-grid solar system?
As you can see, off-grid solar power systems have batteries which are the most expensive components of solar power systems. These batteries make them more expensive compared to on-grid systems. So, on- grid are cheaper than off-grid systems.
Here is a table to provide a short glimpse of their differences:
Feature | Grid-Tie | Off-Grid | Backup |
Connection to the Grid | Yes | No | Yes |
Battery Requirement | No | Yes | Yes |
Cost | Low (no batteries) | High (due to batteries) | Medium (batteries included) |
Ideal for | Reducing electricity bills | Remote locations without grid | Backup power during outages |
Power During Outages | No | Yes | Yes (from battery) |
Energy Independence | Partial (depends on grid) | Full | Partial (only during outages) |
Best For | Urban and suburban homes looking to lower electric bills | Remote homes, cabins, or off-the-grid locations | Homes in areas with frequent power outages or essential power needs |
How Much Does an Off-Grid solar Power System Cost?
The cost of installing off-grid solar power systems depends on many factors, such as the type of solar panels used, the size of the batteries, and the location of the property. On average, a complete off-grid solar power system can cost between $20,000 and $100,000. If you install systems with more components and complexity, like an AC solar system with a backup generator, their price can reach up to $70,000 or more.
When you are checking or comparing their price, make sure to consider the quality of its equipment. Use solar panels, batteries, or inverters of a good reputable brand that is known for its quality. To choose the solar power systems, you must get solar quotes(estimates of installation & savings) from the installer and compare those solar quotes. It will help you choose the best.
Learn how to compare solar panel quotes here!
Cost of Different Types of Off-Grid Solar Power Systems:
System Type | Cost Range |
DC Solar System | $6,000 – $10,000 |
Mixed DC and AC System | $10,000 – $50,000 |
AC System with Wind | $20,000 – $80,000 |
AC Solar System | $30,000 – $60,000 |
AC System with Backup Generator | $40,000 – $70,000 |
Cost of Various Components of Off-Grid Solar Power Systems:
Components | Cost |
Solar Panels | $2.76 per watt |
Solar Charge Controller | $500 – $600 |
Wind Turbines | $6,000 – $11,000 |
Backup Generator | $10,000 – $20,000 |
Solar Battery Bank | $4,000 – $14,000 |
Inverter | $3,000 – $13,000 |
Generator | $40,000 – $70,000 |
Final Thoughts: Are Off-Grid Solar Power Systems Right for You?
Are you someone with high energy usage? Do you need freedom from your electricity bills? Do you want to achieve complete energy independence? Do you live in an area with a high number of sunlight days? Are you ready to invest the high upfront cost required off-grid? Do you live remote location with low/no grid electricity?
If the answer to some or most of these questions is yes, you must install off-grid solar power systems. While the initial cost of installing off-grid solar power systems is high, they offer long-term savings, energy security, and environmental benefits making them a valuable investment.
Here are some more tips for your installation:
- Conduct a detailed audit of your energy needs to design a system that perfectly matches your lifestyle.
- Get quotes from multiple solar panel installation companies, compare them based on cost and quality, and choose the one that fits your needs and budget.
- Choose a system that allows future upgrades as your energy requirements grow.
